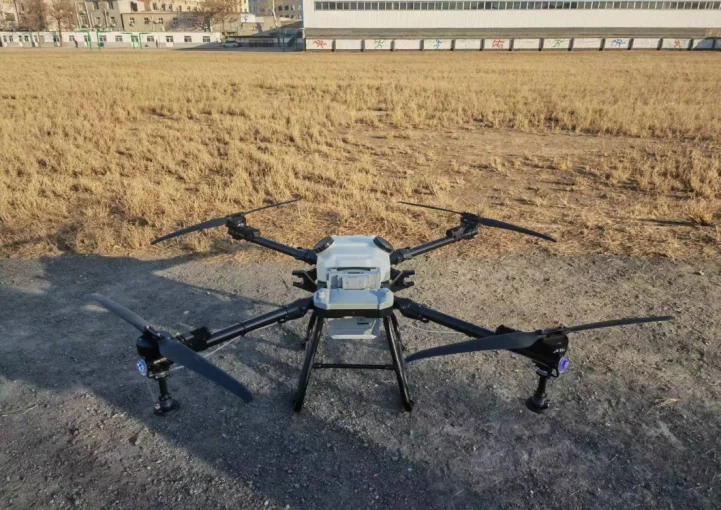

Qauadrotor agricultural unmanned aerial vehicles
Product features
· Fully autonomous operation
· Autonomous route planning
· Night flight function
· 40 thickened carbon fiber machine arm
· Super crash resistance
· The load is 60 kg and the maximum take-off weight is 136 kg
· The inclined folding design makes transportation more convenient
· The core spray width is 5 meters, and the maximum spray width is 7 meters
· The whole machine is waterproof ★ Uses more powerful power and 14S28000mah high-voltage battery pack
· Equipped with 2 super aerosol nozzles/4 one-to-two high pressure nozzles, the flow rate is 8L per minute, and the atomization effect is excellent
· Standard 5.5-inch bright screen remote control
· Use high pressure brushless water pump, electrically adjusted fully waterproof.
· Modular structure of the machine
· Small space occupied after folding
· The fuselage is made of aluminum alloy, which makes it more stable
Detailed parameters
| Product material | Aviation carbon fiber + aerospace aluminum | Automatic aircraft positioning | √ |
| Product wheelbase | 1830-1860mm | Automatic return of aircraft | √ |
| Product folding size | 950*920*700mm | Automatic obstacle avoidance | √ |
| Maximum take-off weight | 68KG | Plane lost control and turned back | √ |
| Maximum load | 30L | Low voltage return of aircraft | √ |
| Aircraft weight | 20KG | Aircraft point to point memory task | √ |
| Aircraft medicine box capacity | 30L | Aircraft autonomous planning operation | √ |
| Flight altitude | ≤30 meters (De-censorship) | Memory of the medication cut-off point on the airplane | √ |
| Flying radius | ≤ 5000 meters | Continuation of spraying at the aircraft’s fuel cut-off point | √ |
| Flight time | 10~20min | UAV GPS system | √ |
| Flight speed | 1-12 m/s | ground station | √ |
| Airplane power life | ≥100,000 flight hours | image transmission | √ |
| Airframe life of aircraft | ≥ 10 years | Radar obstacle avoidance | Optional |
| Job spray width | 5-7 meters | screw propeller | 43 inch high-strength folding paddle |
| Operational endurance | It takes 8 to 10 minutes when loaded | Waterproof motor/electronic adjustment | √ |
| Hovering | Hover in any direction | Impact resistance | √ √ √ |
| Spray flow | 8L/min | Night flight function | √ |
| sprinkling system | High speed aerosol nozzle/pressure nozzle | Whole machine folding | Tilt the folding |
| Efficiency of prevention and control | ≤131.79acre/days | Waveform radar | Optional |
| Safe take-off and landing wind speed | Levels ≤7 | Beyond visual range operation | √ |
| Charging system | Lithium battery balanced computer charger | Flight stability | √ √ √ |
| dynamic system | X11P | Repair tools for accessories | √ |
| Flight mode (manual) | √ | Accessory repair kit | √ |
| Flight mode (smart) | √ | Suitable object | Various crops and fruit trees |
| Flight mode (fully automatic) | √ | Applicable sites | All-Terrain |
| Automatic altitude setting of aircraft | √ | battery | 14S28000mah |
| Automatic aircraft positioning | √ | After-sale service | √ |
