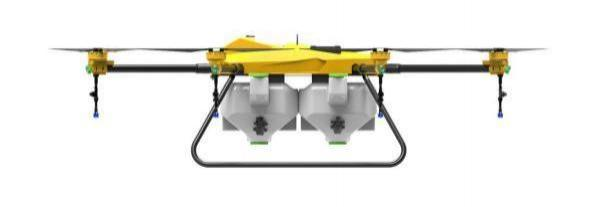

H200

Plant protection drones

Detailed parameters
Product material	Aviation carbon fiber + aerospace aluminum	The plane returned automatically	√
Product unfolding dimensions	3640*3640*850mm	Automatic obstacle avoidance	√
Product folding size	920*920*1770mm	The plane lost control and returned	√
Maximum take-off weight	260KG	The plane returned to the air with low voltage	√
Maximum load	130KG	Plane point-point memory assignment	√
Aircraft weight	65KG	The aircraft is fully autonomous in planning operations	√
Aircraft medicine box capacity	95L	Aircraft drug cut-off point memory	√
Flight altitude	≤30 meters	Aircraft spraying at the point of drug interruption	√
Flying radius	≤ 5000 meters	UAV GPS  system	√
Flight time	7 ~30min	Earth station	√
Flight speed	1-12 m/s	Image transmission	√
Airplane power life	≥ 100,000 hours	Radar obstacle avoidance	√
Airframe life of aircraft	≥ 10 years	Screw propeller	Fold the paddle
Job spray width	8-20 meters	Turn the block off	√
Operational endurance	It takes 7 to 13 minutes when full load	Waterproof motor/adjustable	√
Hovering	Hover in any direction	Impact resistance	√ √ √
Spray flow	8-16L/ min	Night flight function	√
sprinkling system	High pressure anti-flocculation atomizing nozzle	The whole machine folds	Convenient to open
Efficiency of prevention and control	≤2800 Acre/Day	Waveform radar	√
Safe take-off and landing wind speed	Levels ≤7	Super sight distance operation	√
Charging system	Lithium battery balanced computer charger	Flight stability	√ √ √
Flight mode (manual)	√	Accessory repair kit	√
Flight mode (smart)	√	Suitable object	Various crops and fruit trees
Flight mode (fully automatic)	√	Applicable sites	All-Terrain
Automatic altitude setting of aircraft	√	service tools	1 set
Automatic aircraft positioning	√	After-sale service	One-year warranty and lifetime after-sales service
