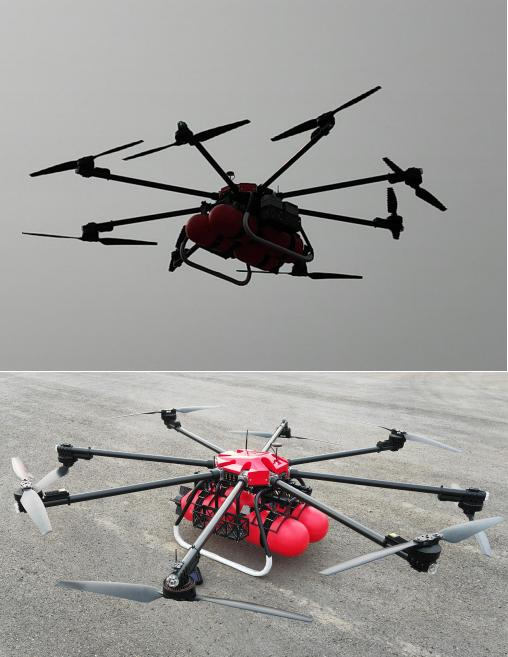

Airdrop firefighting drones
Product introduction
The drone-aided forest fire suppression system is suitable for mountainous areas, grasslands, forest fires, and specific urban regions. The system consists of a drone, a hanging release mechanism, an aiming dispenser, a laser rangefinder, and the air-dropped forest fire suppression bomb. A single drone can carry either two or four forest fire suppression bombs, with the hanging release mechanism, aiming dispenser, and laser rangefinder fixed on the drone’s belly by specialized brackets. Once a forest fire is detected, the forest fire prevention command center activates the forest fire suppression plan, dispatching multiple drones equipped with the air-dropped forest fire suppression system to quickly reach the fire site. The fire suppression bombs and laser rangefinder begin communicating from the moment the drone takes off from the base, allowing the pilot to control the drone’s flight and aim for the release The image transmission function of the device controls the unmanned aerial vehicle’s drop-type fire extinguishing system to hover over the fire site. The flight altitude is adjusted based on the size of the fire and its temperature, with safety being the primary consideration. The pilot remotely releases all forest fire extinguishing bombs carried by a single drone. These bombs either explode upon impact at an altitude of 0.5 to 2 meters above the fire or trigger explosions when they encounter obstacles such as tree canopies during their descent. The water-based (or dry powder) extinguishing agent inside the bomb is transformed into high-pressure fine water mist (or dry powder) under the explosive action of the central tube’s gunpowder, quickly spreading to cover the fire source. The fire is extinguished by the shockwave from the bomb’s explosion and the coverage provided by the high-pressure fine water mist (or dry powder). Due to the flame-retardant properties of the water-based extinguishing agent, the fire extinguishing bombs effectively combat fires More efficient performance.
Technical parameters of unmanned aerial vehicles
| Expand the dimensions | 5600mm×5600mm×980mm |
| Body weight | 52kg |
| Flight altitude ceiling | 4500m |
| Job height | ≤1000m |
| Load weight | 100kg |
| Maximum take-off weight | 190kg |
Fire extinguishing parameters
| Bullet diameter | 268mm |
| Full ammunition length | 600mm |
| Full ammunition weight | ≤26kg |
| Types of fire extinguishing agents | Water-based or dry powder fire extinguishing agent with water-based adhesive |
| Net weight of fire extinguishing agent | ≥25kg |
| Main material of the projectile | PET、ABS |
| Fire extinguishing ability of fire bombs | The throwing radius of fire extinguishing agent is ≥ 15 meters |
| Fire extinguishing agent spread area | ≥200 square meters |
| Safe radius of fire extinguisher | ≥40 meters |
| Fire extinguishing firing current | ≥1000mA |
| Fire extinguisher safety current | ≤200mA |
| Release the safety height when the fire extinguisher falls | ≥15 meters |
| Fireball drop height | 15 meters-100 meters |
| Fire extinguishers use ambient temperature | -104°F~+140°F |
| Fully sealed | Waterproof and moisture-proof |
| Safety insurance | Double insurance, explosion-proof type |
| Service life of fire extinguishers | ≥2 years |
| Environmental temperature for the use of fire extinguishing systems | -52°F~+140°F |
